Domestic and Residential Water Purifier
Our Products

Domestic and Residential Water Purifier

dm-water-plant

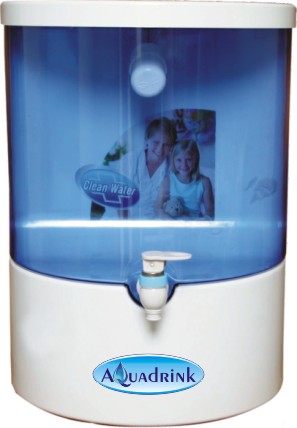

Dolphin


  • Purification capacity 10 to 15 ltr/hr.
  • Sealed Inline Spun Filter.
  • Sealed Inline Pre Carbon.
  • Sealed Inline Post Carbon.
  • Sealed RO Membrane 75 gpd.
Dolphin is best suited for placement on counter or on kitchen wall. Dolphin water purifier is based on the RO technology that removes even Dissolved Impurities.



Features

  • Purification by RO Control.
  • Solenoid valve 24-48 vdc.
  • Booster Pump 100 gpd.
  • Float with Cheery Switch.
  • In let valve assembly.
  • Filter Set.
  • Storage Tank Capacity 8 Liter.
  • Size – 16" x 12" x 10".
  • Min. Inlet Water Pressure 0.5kg/cm2.
  • Operating Voltage 24-48 volt/1.2 Amp D.C.

APPLICATIONS

  • For mounting on kitchen wall or counter-top installation.
  • Suitable for raw water from all types of sources like bore well, overhead storage tanks, water tankers and even municipal taps.

Specifications

Model : Dolphin
Purification Capacity : 15 ltr/hr
Storage Tank Capacity : 8 liters
Filter Cartridges : Sediment, Activated, Carbon, UF, Post Carbon
RO Membrane : 1812 – 75 GPD
Min. Inlet Water Pressure : 0.3 Kg / cm2
Input Voltage : 160 – 130V AC (50Hz)
Operating Voltage : 24V DC

Aqua Pearl

  • Purification by RO + UV + TDS Control.
  • High Purification capacity of 15 ltr/hr.
  • 8 Liter storage capacity.
  • Detachable tank for easy on-site cleaning on regular basis.
  • Food-grade, non-breakable, transparent ABS plastic construction.
Aqua Pearl is best suited for placement on counter or on the kitchen wall. Aqua Pearl water purifier is based on the Aqua technology that removes even Dissolved Impurities while retaining essential minerals and offers double purification of RO followed by UV.


Features

  • Detachable tank for easy on site cleaning regularly.
  • Food grade, non-breakable, transparent ABS plastic construction.
  • High Purification capacity of 15 ltr/hr.
  • 8 liter storage capacity.

APPLICATIONS

  • For mounting on kitchen wall or counter-top installation.
  • Suitable for raw water from all types of sources like bore well, overhead storage tanks, water tankers and even municipal taps.

Specifications

Model : Aqua Pearl
Purification Capacity : 15 ltr/hr
Storage Tank Capacity : 8 liters
Filter Cartridges : Sediment, Activated, Carbon, UF, Post Carbon
RO Membrane : 1812 – 75 GPD
UV Lamp Power : 11W
Min. Inlet Water Pressure : 0.3 Kg / cm2
Input Voltage : 160 – 130V AC (50Hz)
Operating Voltage : 24V DC
Dimensions (mm) : 405 (L) 330 (W) 470 (H)

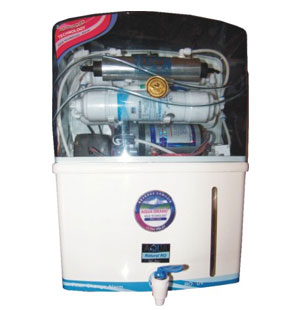

Aqua Grand Plus

  • Purification by RO + UV + TDS Control.
  • High Purification capacity of 15 ltr/hr.
  • High capacity storage tank with purified water level indicator.
  • Elegant design with transparent cover.
Aqua Grand Plus is best suited for mounting on kitchen wall. Aqua Grand Plus water purifier is based on the Aqua technology that removes even Dissolved Impurities while retaining essential minerals and offers double purification of RO followed by UV.


Features

  • Food grade, non-breakable, transparent ABS plastic construction.
  • High Purification capacity of 15 ltr/hr.
  • 8 liter storage capacity.

APPLICATIONS

  • For mounting on kitchen wall or counter-top installation.
  • Suitable for raw water from all types of sources like bore well, overhead storage tanks, water tankers and even municipal taps.

Specifications

Model : Aqua Grand Plus
Purification Capacity : 15 ltr/hr
Storage Tank Capacity : 8 liters
Filter Cartridges : Sediment, Activated, Carbon, UF, Post Carbon
RO Membrane : 1812 – 75 GPD
UV Lamp Power : 11W
Min. Inlet Water Pressure : 0.3 Kg / cm2
Input Voltage : 160 – 130V AC (50Hz)
Operating Voltage : 24V DC
Dimensions (mm) : 405 (L) 330 (W) 470 (H)

RO - 25 to 50 LPH

  • Purification capacity 25 to 50 ltr/hr.
  • Housing-20"-3 Nos.
  • Spun Filter 5 Micron.
  • Granules Activated Carbon.
  • Carbon Block.
  • RO Membrane 75 gpd x 2 or 4 Nos.

The five stages of RO Systems are as follows :

  • Pre-Filter : Spun Polypropylene - Removes suspended impurities like particles, rust and dust.
  • Pre-Carbon Filter : Silver Impregnated Granular Activated Carbon Removes colour, odour free chlorine and absorbs pesticides.
  • Sediment Filter : Melt blown polypropylene Acts as a final filter to remove smaller contaminants and remaining particles. Reduces fine turbidity.
  • Reverse Osmosis Membrane : Melt Thin Film Composite (TFC) 0.0001 micron Removes TDS, Hardness, Fluoride, Pesticides, Heavy Metals like Lead, Mercury, Cadmium and Arsenic etc… It also removes micro organisms like Bacteria, Viruses and Protozoan Cysts.
  • Post-Carbon Filter : Silver Impregnated fine Granular Activated Carbon Imparts bacteriostatic property and helps in reviving the original taste of water.

APPLICATIONS

  • Reverse Osmosis System provides close to 99% removal of almost all unwanted and harmful substances.
  • Auto Shut-Off prevents the pump from dry running, in case the overhead tank is empty.
  • It removes micro organisms like Bacteria, Viruses and Protozoan Cysts.
  • From RO, you will get Fresh, Sweet and safe water.

Big Blue

  • Large Capacity Housings for Higher Flow Rates.
  • The sumps are constructed of reinforces polypropylene.
  • Housings are available in 10" and 20" lengths.

The large capacity Big Blue housings are available with either 1" or 1 ½" NPT for versatility. The sumps are constructed of reinforced polypropylene and are available in two cap styles. The large body size allows for greater cartridge capacity, thus reducing the number of vessels normally required in parallel installations. Housings are available in 10" and 20" lengths to best meet your needs.

The standard cap is molded of glass-reinforced ABS and the HFPP High Flow cap is of polypropylene. The HFPP cap can handle high flow rates and is compatible with a broad range of chemicals. The internal port has been enlarged from the standard ¾" or 1 ¼", to allow more liquid to pass through with minimum restriction. Both styles of caps are available with or without a pressure relief button. (Caps and Sumps are interchangeable)

Note : Housings with the HFPP Cap will only accept 4 ½" OD Cartridges.

Housing Specifications :


Dimensions :
- 10 Big Blue 1" : 13 1/8" by 7 ¼" (33.3 by 18.4 cm)
- 10 Big Blue 1 ½" : 13 5/8" by 7 ¼" (34.6 by 18.4 cm)
- 20 Big Blue 1" : 23 3/8" by 7 ¼" (59.4 by 18.4 cm)
- 20 Big Blue 1 ½ " : 23 7/8" by 7 ¼" (60.6 by 18.4 cm)

Maximum Pressure :
- 10 Big Blue : 100 psi (689 kPa)
- 20 Big Blue : 90 psi (621 kPa)
- 20 NSF Tested and Listed Big Blue : 125 psi (862 kPa)

Recommended Flow Rates :
- 10 Big Blue : 1 to 40 GPM (3.80 to 151 LPM)
- 20 Big Blue : 1 to 50 GPM (3.80 to 189 LPM)
